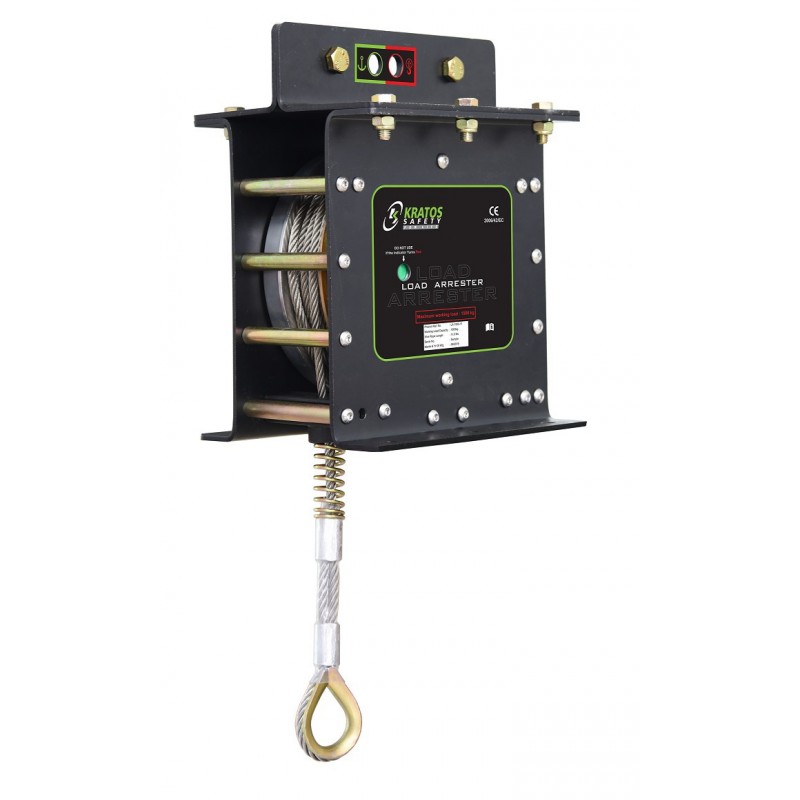

Load arrester (max 1000 kg)

Reference : LA10100011

Load arrester (max 1000 kg)

Load arrester (max 1000 kg)

Length of the wire rope : 11 metres.

Load capacity : 1000 kg.

Weight : 30 kg.

Material: Casings: Steel. Wire Rope: Stainless Steel diam. 8.0 mm.

Multi-ratchet quick fall arrest system.

Integrated energy absorber, which reduces the efforts on the structure.

Reduced fall arrest distance.

Intensive number of cycles.

Fall indicator and end of stroke indicator.

Can be fixed to a structure or suspended.

Operates with cable exit downwards or upwards (fixed to the fixed part or to the moving part).

On the upper part, 2 holes: 1 for lifting, 1 for fixing (anchorage).

Conforms to : 2006/42/EC (Machinery Directive).

HS Code : 8428 90 90.


To download the load arrester instructions for use, please see the Attachment tab




LA10100011

Data sheet

Standard(s):
2006/42/CE
Material:
Carters Acier ; câble acier galvanisé
PPE / NO PPE
No PPE
Size:
Cable length: 11 mCable diameter: 8.0 mm
Product highlights
Charge max. 1000 kg

Specific References

Download

Latest versions - May differ from the documents delivered with the product or previously received.

• Instructions LA 10 XXX XX
LA 10 250 10, LA 10 300 XX, LA 10 400 XX, LA 10 500 XX, LA 10 1000 XX
Download

• FT LA 10 1000 11
Download

• ATEX Certificate 3266/1/2020
FA 60 008 00-01-03, LA 10 250 10, LA 10 300 10/15, LA 10 400 10/20, LA 10 500 10/15, LA 10 1000 11/16
Download

• la101000XX_Inspection5
LA 10 1000 11, LA 10 1000 16
