Antichute de charge (maxi 250 kg)
  • Antichute de charge (maxi 250 kg)
  • Antichute de charge (maxi 250 kg)

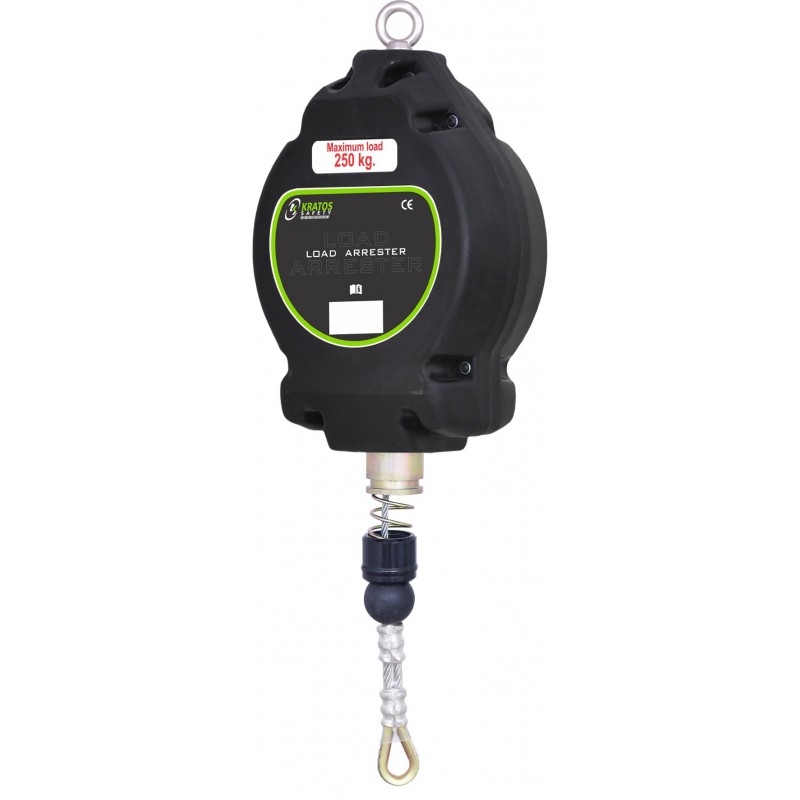

Load Arrester (maxi 250 kg)

Reference : LA1025010

Load arrester with galvanized steel wire rope length 10 mtr designed to stop the fall of a 250 kg maxi weight load

Load Arrester maxi 250 kg

Length of the wire rope : 10 metres

Load Capacity : 250 kg

Weight : 4.15 kg

Diametre of the wire rope : 4.8 mm

Conforms to : 2006/42/CE

HS Code : 8428 90 90

Casing made up of high impact strength Polymer, to prevent breakage and is nearly indestructible.

Multi-ratchet quick fall arrest system.

Integrated energy absorber, which reduces the efforts on the structure.

Reduced fall arrest distance.

Maximum 60 cycles per day.

To download the load arrester instructions for use, please see the Attachment tab




LA1025010

Data sheet

Standard(s):
2006/42/CE
Material:
Carter Polymer ; câble acier galvanisé
PPE / NO PPE
No PPE
Size:
longueur du câble: 10 mdiamètre du câble: 4.8 mm
Attachement points:
émerillon en partie haute
Product highlights
charge max. 250 Kg

Specific References

Download

Latest versions - May differ from the documents delivered with the product or previously received.

• Instructions LA 10 XXX XX
LA 10 250 10, LA 10 300 XX, LA 10 400 XX, LA 10 500 XX, LA 10 1000 XX
Download

• FT LA 10 250 10 F2020
FT LA 10 250 10 F2020
Download

• ATEX Certificate 3266/1/2020
FA 60 008 00-01-03, LA 10 250 10, LA 10 300 10/15, LA 10 400 10/20, LA 10 500 10/15, LA 10 1000 11/16
Download

• la10XXX_Inspection5
LA 10 250 10, LA 10 300 XX, LA 10 400 XX, LA 10 500 XX
Download
